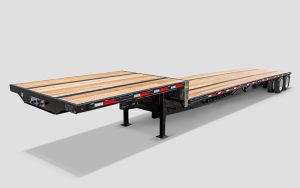

Wabash COMBO DROP DECKS
| Manufacturer: WABASH |
Request More Info
Make & Model
Detailed Specifications
28'- 53'
96" and 102"
554: 55,000 lb in 4' / 60,000 lb in 10' / 80,000 lb over lower deck,804: 80,000 lb in 4' / 85,000 lb in 10' / 94,000 lb over lower deck
Trailer
Main beam flange and web fully welded at all flange-web joints,
High-strength 50,000-PSI steel web,
Web to flange attached by 100% automated continuous weld,
Heat-treated, high-strength steel flanges rated at 130,000 PSI,
Cross braces on 24" centers and knee braces on nominal
48" centers,
Lifetime main beam warranty.
Three rear stake pockets integral to rear plate,
Horizontal bumper end caps for corrosion protection,
Rubber dock bumpers mounted vertically with three bolts,
Bumper assemblies are United States Department of
Transportation (DOT) and Transport Canada compliant.
6061-T6 extruded aluminum siderail,
Radius edges and extruded aluminum rub rail with recessed
groove,
Extruded aluminum stake pockets on 24" centers,
Large diameter double pipe spools.
80K high tensile 4" steel "I" beam crossmembers on 12" centers,
Mylar gaskets installed between aluminum and steel components,
Maximum strength, interlocking combination aluminum and wood
floor boards,
Eight 1-1/8" thick aluminum floorboards installed with two inner and
outer apitong nailers and two grade-8 screws per crossmember,
Optional 5" aluminum crossmembers on 12" centers available.
100% shot blasted prior to assembly, no chemical pretreatment requiredAutomotive grade paint system with ultra high-zinc epoxy primer and galvaniccoated prior to trailer assemblySteel surfaces painted prior to assembly with automotive grade acrylicurethane paint
Trailer
Additional air and electric configurations,
Additional aluminum components,
Specialized coil and floor packages,
Alternate crossmember spacing,
Beaver tail with level deck damps,
Customized bumper filler plates,
Factory installed bulkheads,
Low deck option,
Multiple axle configurations, sliding suspensions and lift axles,
Multiple accessories, freight securement and storage options.
