Cheetah Chassis 20′-40′ MAXIMIZER 12-PIN 3-AXLE FLIP-UP REAR BOLSTER CHASSIS
| Manufacturer: Cheetah Chassis |
Request More Info
Detailed Specifications
FLIP-UP REAR BOLSTER CHASSIS
Approximately 10,800 lb.
90,000 lbs in the 40 ft. position
All structural steel is ASTM-A572, Grade 50, or ASTM-A607, Grade 50 or better unless otherwise specified. All structural fasteners are Grade 5 or better and are zinc coated
Fabricated I-beam with high-tensile steel
Fabricated steel
0.25" thick pick up plate
46.5 inches
Fabricated steel
Manual swing down designed to provide a flush back for docking
Fabricated with retractable twist-locks, Hi-Lo Intermediate Bolsters fabricated with swing down twist locks.
30.8 feet
40.5 feet
96 inches
Steel outboard mounted
Three-leaf spring ride
Description

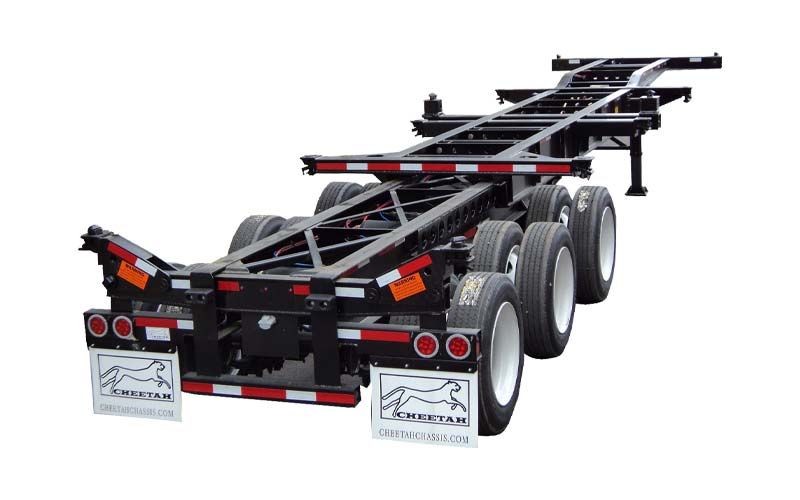

When maximum versatility is critical to your company’s success, our 20-40 Maximizers 12-Pin version is your perfect choice. Able to accommodate a 40’, 20’, or two empty 20’ containers, the 12-Pin container chassis is sure to fit your need and ensure you are never running without a load. https://cheetah-images.s3.amazonaws.com/8/20-40-max-12-pin-3-axle.jpg
